Hope Union GC Pedals

Developed for the intensity of downhill (DH) riding, the Hope Union GC Pedals feature seven replaceable pins per side, a dual mechanism and fully CNC-machined pedal bodies.

Engineered for powering you through the roughest of terrain conditions, these DH-orientated pedals are equipped with a fully CNC-machined pedal body construction for maximum strength and durability. Hope has also kitted these out with stainless steel clips and cleats for a strong and secure hold as you charge down the trails. Another benefit is they feature heat-treated and plated chromoly (Cr-Mo) steel axles, making them robust and reliable wherever your next ride takes you.

Downhill Clip-In Pedals with Large Platform Size

Perfectly suited for the demands of modern downhill mountain bike riding, these pedals boast large platform size with a dual-sided mechanism that’s designed for easy pedal entry, secure cleat holding and positive, consistent release functionality. They also have a footplate option on each pedal for maximum shoe/pedal contact. Focusing on increased grip, these have seven replaceable pins per side, which allows you to enjoy excellent stability and control. One final highlight is they run on three cartridge bearings and a maintenance-free IGUS bush for smooth long-term durability.

Technologies:

– Fully serviceable and re-buildable
– Titanium axle upgrades are available separately
– Q-Factor – 55mm
– Pedals supplied with two cleats options; 4°or 5° of free float and 12° or 13° release angle respectively. Both cleats also allow 2mm of lateral (side to side) float.
– Large platform with the option of 7 pins per side or footplates to give maximum contact between the shoe and pedal and to provide the greatest stability.
– Pedals run on three cartridge bearings and a maintenance-free IGUS bush for smooth long-term durability.

Manufacturer’s Part Numbers:

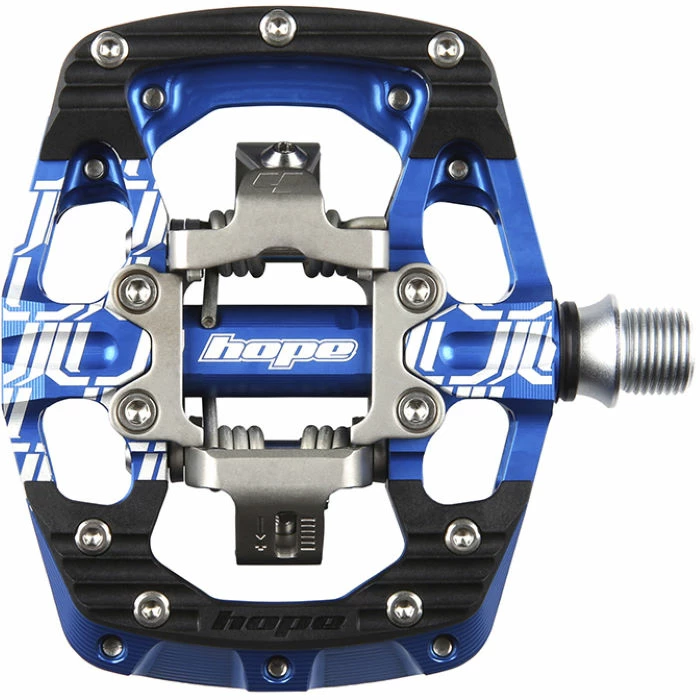

PDUGCB Blue

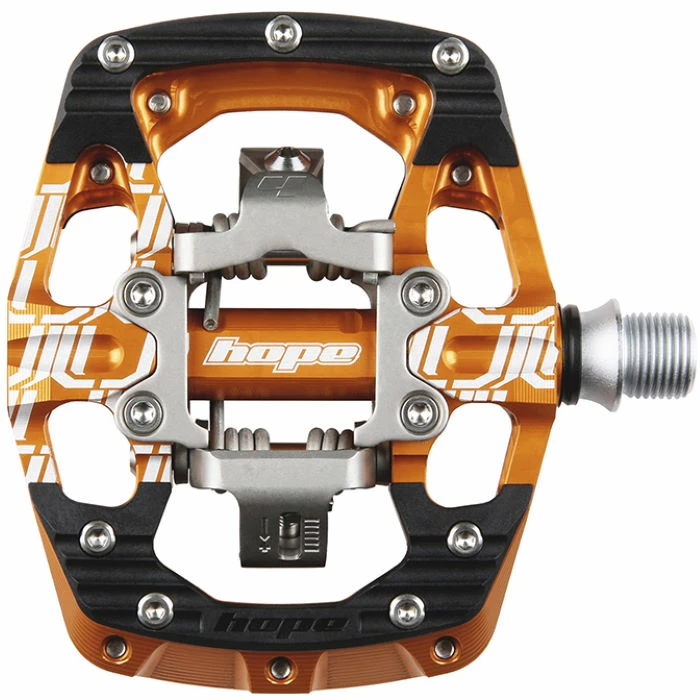

PDUGCC Orange

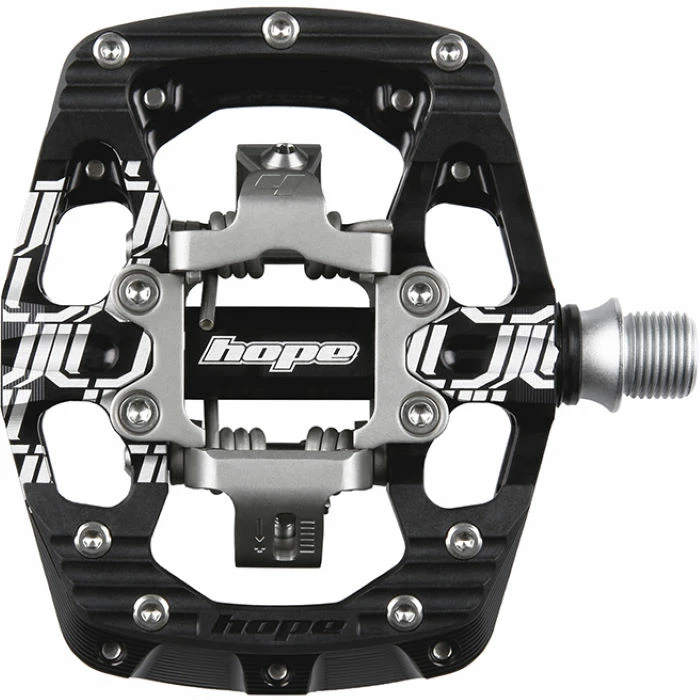

PDUGCN Black

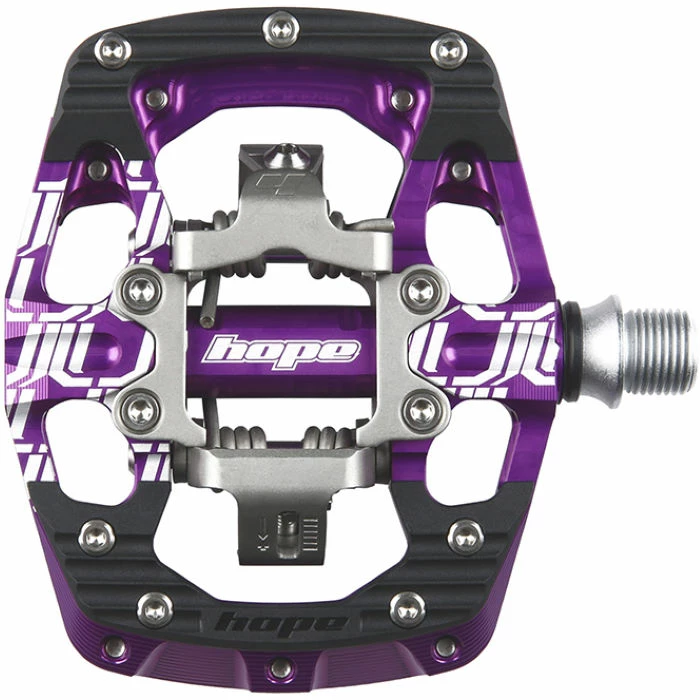

PDUGCPU Purple

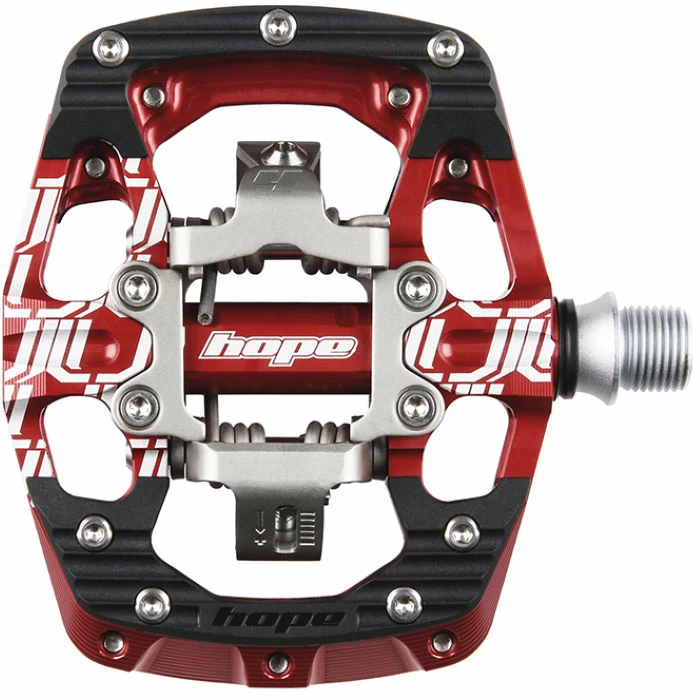

PDUGCR Red
PDUGCS Silver

Topfunktioner:

• Pedal Body Material: Fully CNC-machined
• Clips and Cleats Material: Stainless Steel
• Axle Material: Heat-treated and plated Chromoly (Cr-Mo) Steel
• Use: Downhill
• Dual sided
• Dual mechanism designed for easy pedal entry, secure cleat holding and positive, consistent release
• Replaceable pins for increased grip on Union GC (14 pins)
• Footplate option on pedal for maximum shoe/pedal contact
• Large shoe/pedal contact area for maximum power transfer and stability
• Pedals supplied with two cleats options
