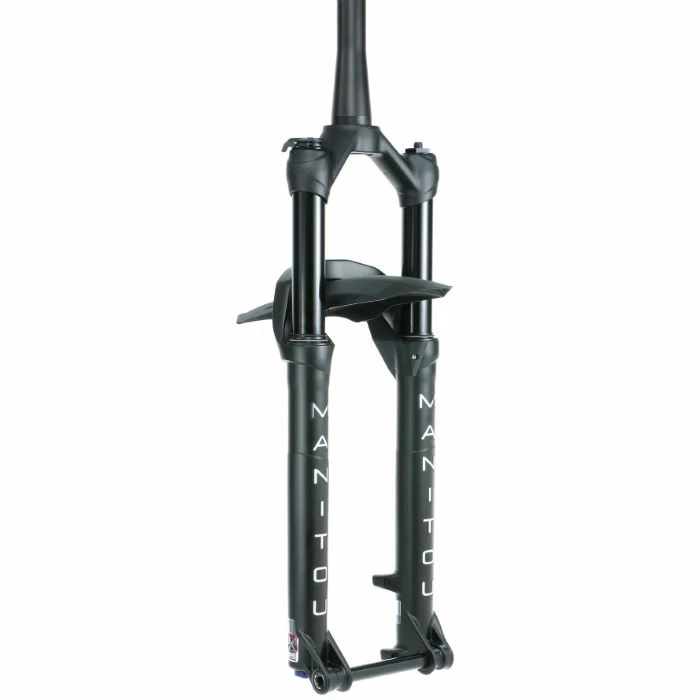

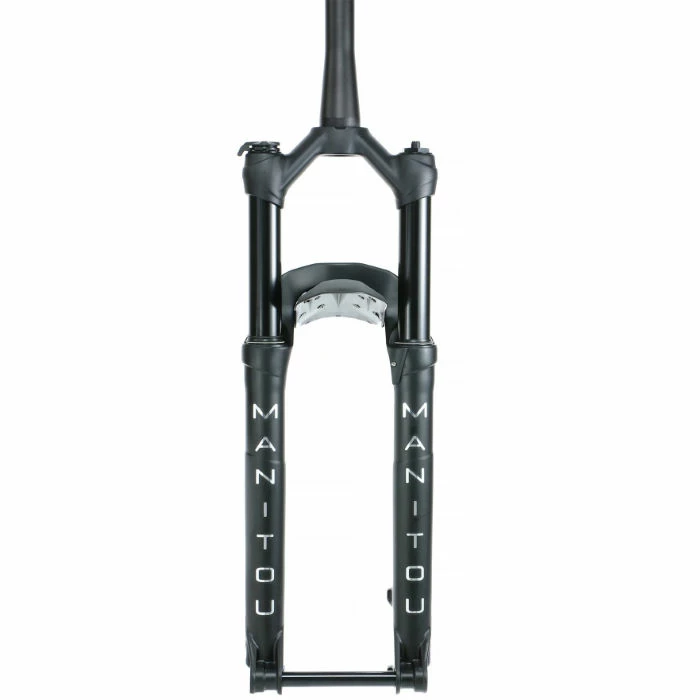

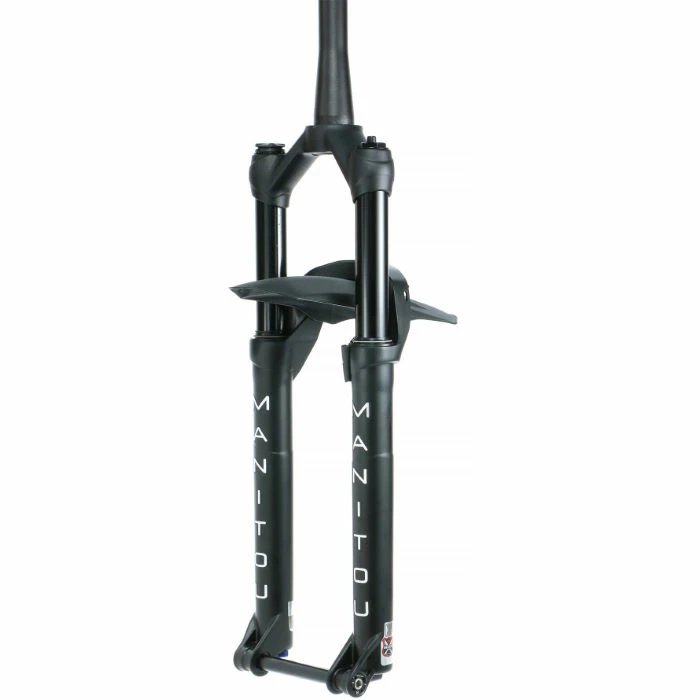

Manitou Machete Suspension Fork

Ready for hitting the trails, the Manitou Machete Suspension Fork features rock-solid aluminium legs, Kwik Toggle compression damping and an impressively lightweight design.

Whether you’re shredding with your friends after work or exploring new trail routes on your own, this high-quality fork is engineered for reliable performance. It features a durable 6000-series straight wall aluminium leg construction, which makes it ideal at handling the knocks and bumps that are associated with all-day epics in the mountains. Manitou has also equipped this model with a TS Air spring, Kwik Toggle compression damping as well as In-leg adjustable TPC rebound damping. This means that riders can set it up to perfectly match their riding style as well as the terrain conditions. Inspired by the brand’s renowned Absolute+ technology, this version’s Kwik Toggle compression damping also achieves on/off lockout simplicity in a lightweight, practical package.

Item Top Features Continued:

Max Tyre Size: 68mm (27.5″) 77mm (27.5+), 68mm (29″)

Offset: 37mm(27.5″); 44mm (27.5+/29″)

Ride Height: 471-511mm (27.5″); 485-525mm (27.5+/29″)

Travel: Multiple options available to select

E-Pac: No

Manufacturer’s Part Numbers:

191-36971-A002 Black 27.5″ x 120mm travel
191-36971-A003 Black 27.5″ x 100mm travel
191-36975-A002 Black 27.5+/29″ x 120mm travel
191-36975-A003 Black 27.5+/29″ x 100mm travel

Topfunktioner:

• Material: Leg: 6000- Series Straight Wall Aluminium; Crown: Forged Aluminum, Hollow Bore Matte
• Axle: 15mm x110mm Hexlock
• Use: MTB
• Steerer Diameter: 1.5″ Tapered; Leg Diameter: 32mm
• Spring: TS Air
• Compression Damping: Kwik Toggle
• Rebound Damping: In-leg adjustable TPC
• Adjustments: Air, Rebound, Lockout
• Brake Post Mount: Post Mount 160mm (203mm Max)
• Weight: 1862g (27.5″); 1885g (27.5+/29″)
