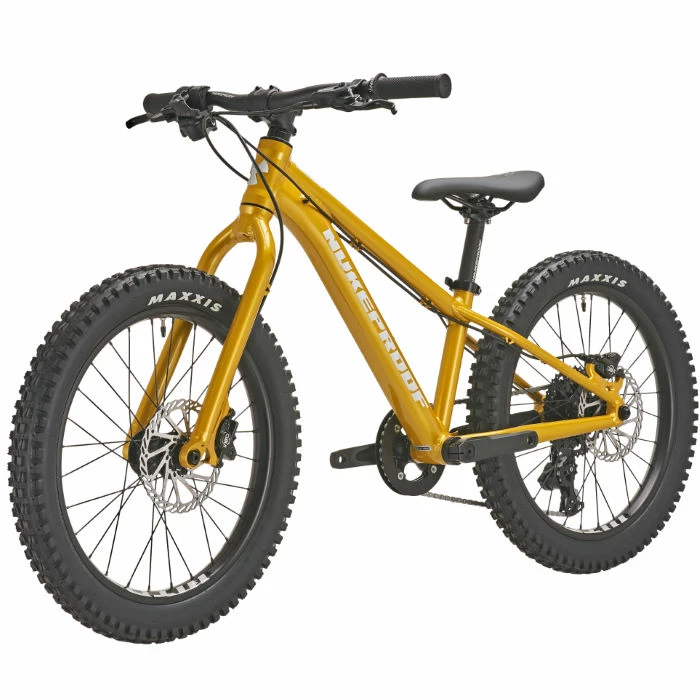

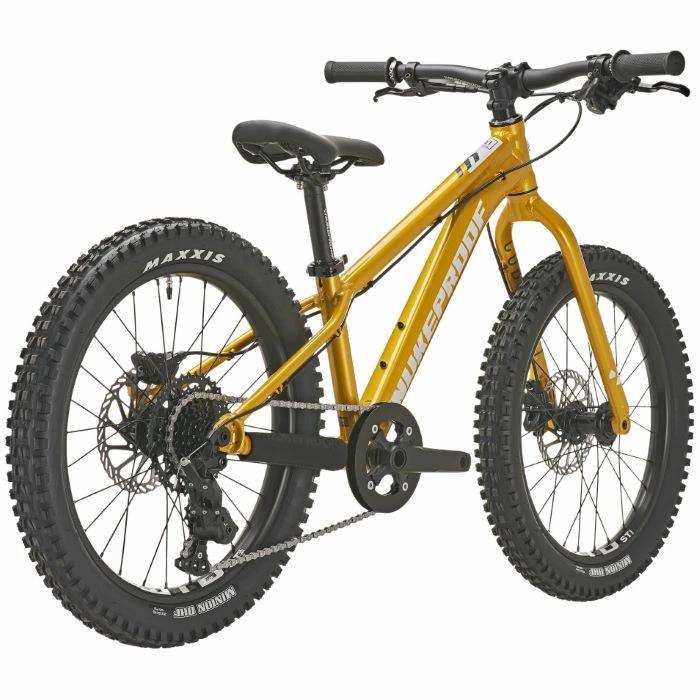

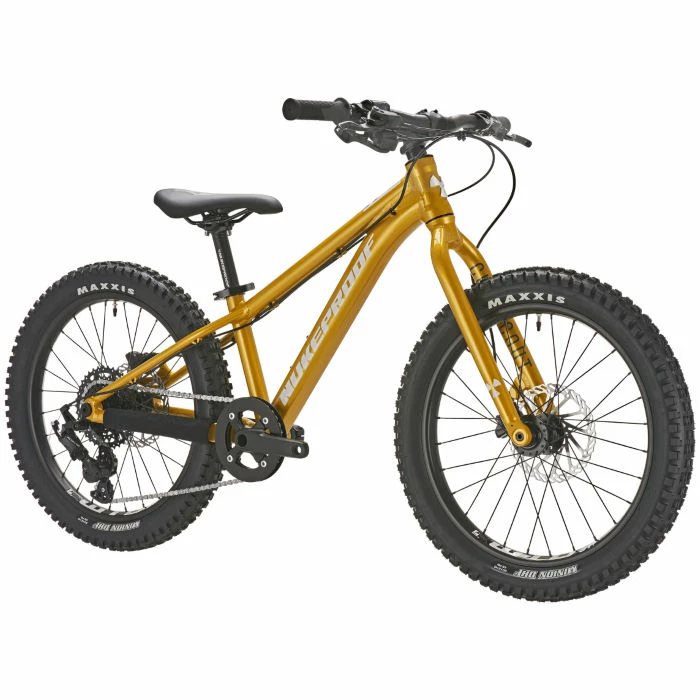

Nukeproof Cub-Scout 20 Sport Youth Mountain Bike (Acolyte –

The Nukeproof Cub-Scout 20 Sport Mountain Bike offers fast, agile and stable performance suited to younger riders learning and developing their style on the trails. It also features size-specific components suited to junior cyclists.

The Cub-Scout 20 Sport features a Shimano 8-Speed groupset, Clarks Clout hydraulic disc brakes and a superb kids-specific finishing kit from Nukeproof. It also rolls upon Boost Joytec hubs, Tubeless Ready WTB STi30 rims and high-grip Maxxis Minion DHF 2.4″ tyres.

Engineered for Young Off-Road Trail Riders

The Cub-Scout 20 Sport is not just another kids bike: taking inspiration from Nukeproof’s award-winning Scout adult hardtail range, the Cub-Scout 20 has been designed from the ground up as a proper mini-hardtail mountain bike. It has been designed to allow kids to learn the ropes of riding, inspire confidence on the trails and act as the perfect platform for progression. Developed and tested with the help of their own children, Nukeproof has created a class-leading lightweight kids bike range to inspire and nurture budding future World Cup or EWS winners.

The range of Cub-Scout Hardtails are available in 20”, 24” or 26” options. This means that there should be a bike to suit kids of all sizes from ages 5 and up. Each bike features a lightweight custom butted 6061 Alloy frameset with bang up to date long, low and slack kids specific geometry.

Kids Specific Components

Proper fit and function of components are essential for kids bikes because adult components are not optimised for smaller people. To ensure that these bikes fit and function perfectly, Nukeproof took the time to test and develop their own or work with their partners to select the best kids-specific components they could find on the market.

Kid Specific parts include:

Cub-Scout 20 Frame
Nukeproof 20″+ Rigid fork
Clarkes Kids Specific Hydraulic Disc Brakes
Nukeproof Urchin Saddle
Nukeproof Urchin Handlebar (600mm wide)
Nukeproof Urchin Grips
127mm Samox 2 piece Crank
WTB STi 30 TCS Rims (Tubeless Ready)
Large Volume 2.4’’ Maxxis Tyres to ensure grip and a smooth ride

Features:

Frame: Nukeproof Cub-Scout 20, custom-butted hydro-formed 6061 Alloy, threaded bottom bracket, 142mm Bolt-thru rear axle spacing
Fork: Nukeproof Cub-Scout 20”+ Fork, custom-butted hydro-formed 6061 Alloy, 1 1/8th Steerer, 40mm Offset, 15x100mm Bolt-thru Axle
Front Wheel: Joytec D041-15 15x100mm hub on WTB STi30 20″ TCS Rim
Rear Wheel: Joytec D952TSE-X12 12x142mm hub on WTB STi30 20″ TCS Rim
Tyres: Front & Rear: Maxxis Minion DHF 20″ x 2.4″, TR

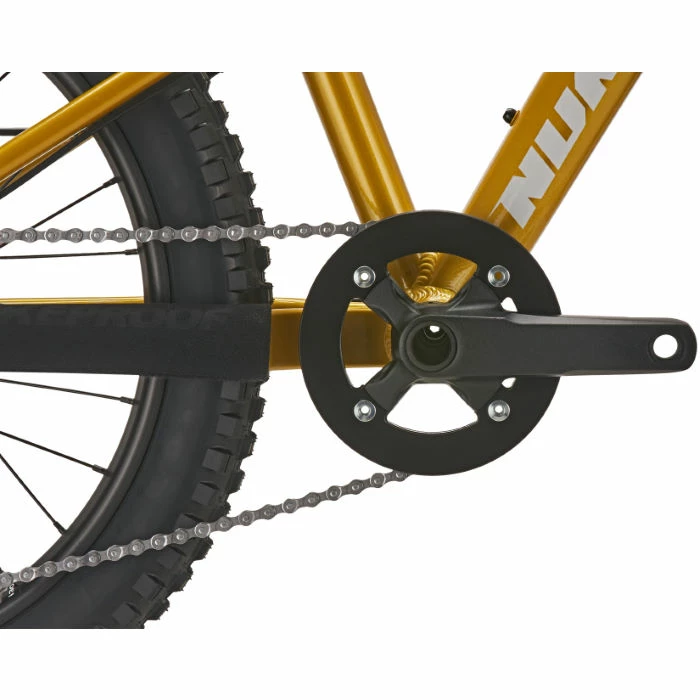

Crankset: Samox TAF38J 2 Piece Crank 127mm, 32T, BCD 104
Shifter: Shimano M315 8-Speed, w optical display
Rear Derailleur: Shimano M310 8-Speed
Chain: KMC Z8.1 EPT 8-Speed
Cassette: Sunrace CSM55 8-Speed, 11-34T
Brakes: Clarks Kids Specific Hydraulic Brakes

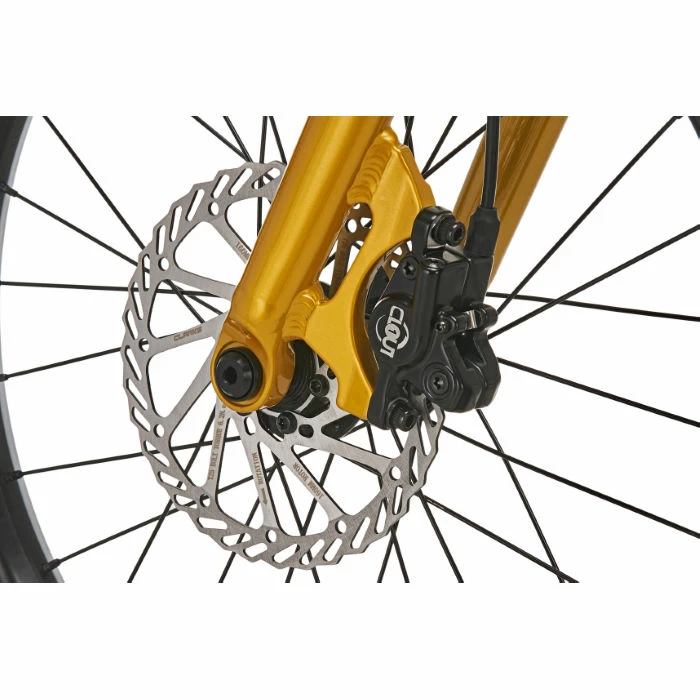

Front Rotor: Clarks, 160mm

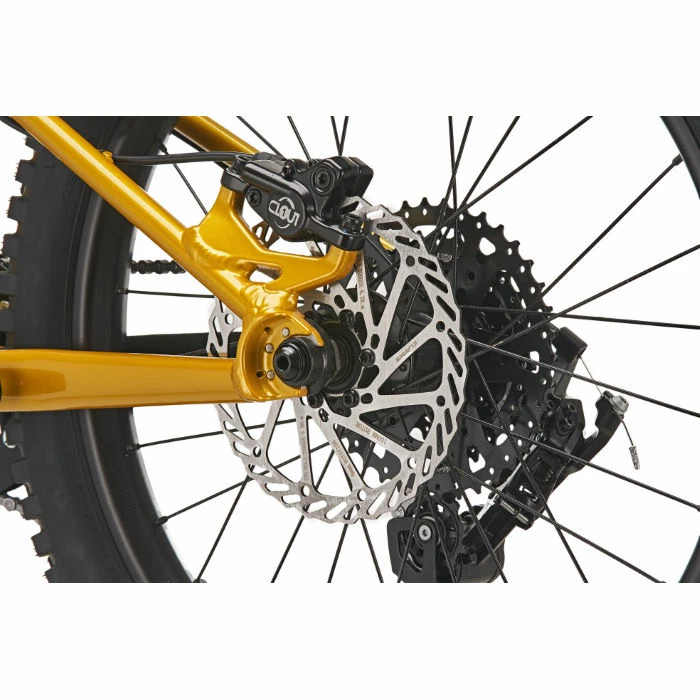

Rear Rotor: Clarks, 160mm

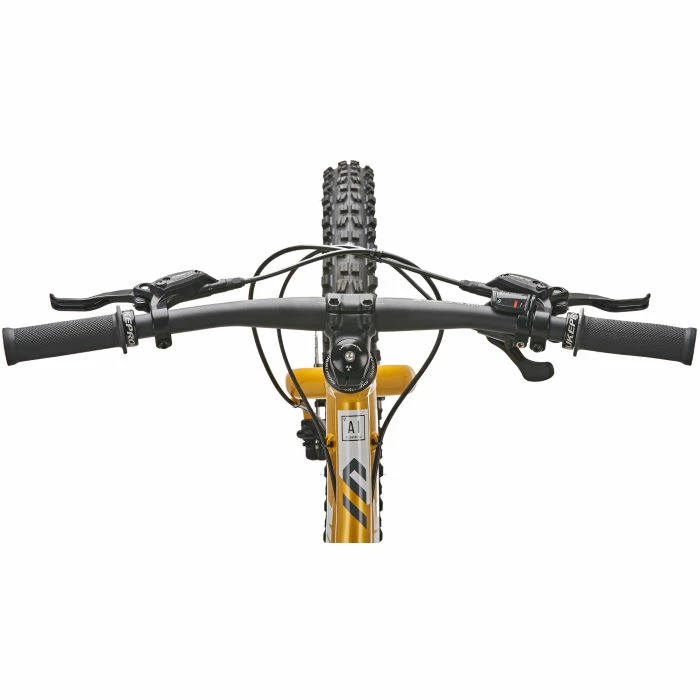

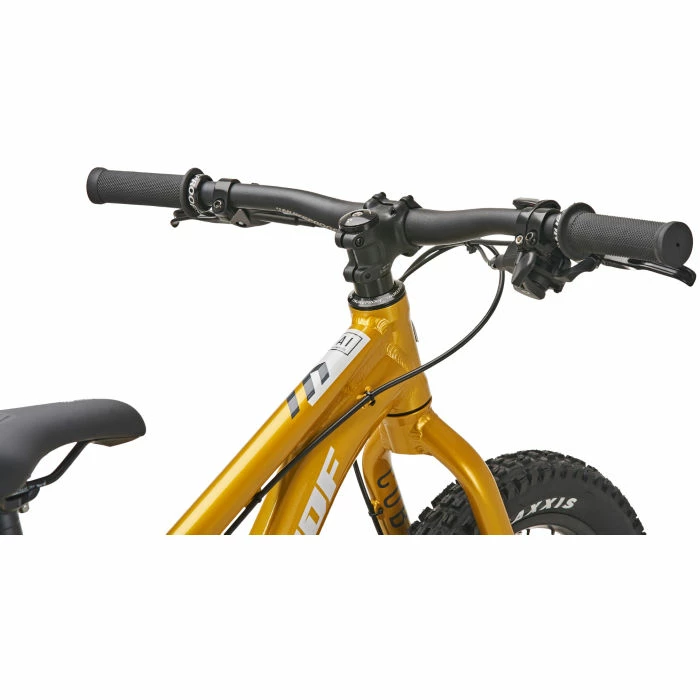

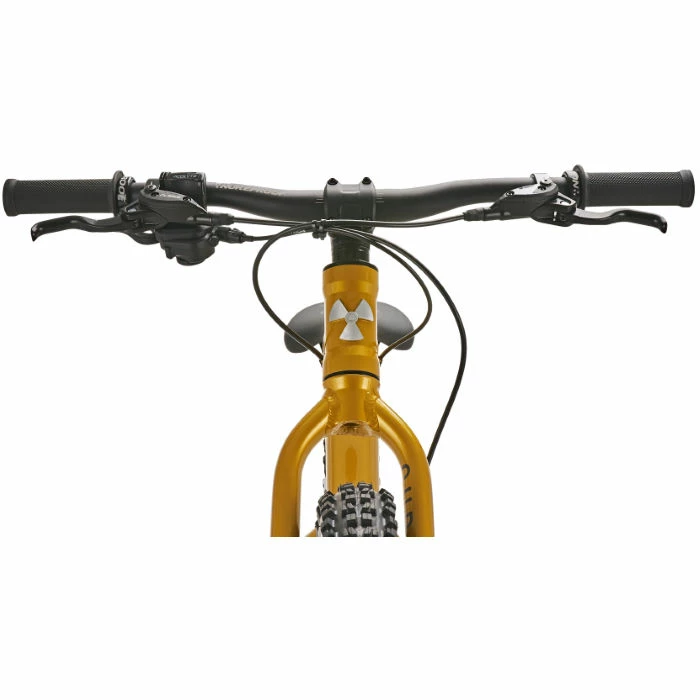

Handlebar: Nukeproof Urchin 600mm Wide, 15mm Rise, 31.8mm Clamp
Stem: OEM 40mm, black

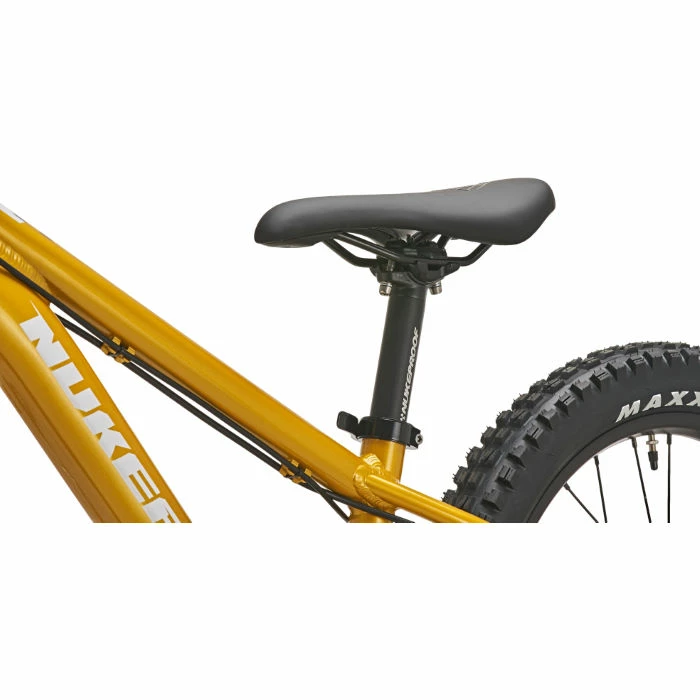

Saddle: Nukeproof Urchin, Black
Seatpost: Nukeproof Urchin, Black, 27.2mm, 300mm Long, 0 Offset
Headset: Nukeproof Warhead, 44-44 IESS
Grips: Nukeproof Urchin Single Clamp lock on, 115mm Long, Soft Compound
Weight: 10.02kg

Key Information:

Material: Hydroformed 6061 Triple-Butted Aluminium
Fork Travel: N/A
Axle to Crown: 385mm
Fork Offset: 40mm
Wheels Size: 20″
Max Tyre Size: 2.6″
Sizing: One Size
Headtube: 44mm Semi-Integrated
Headset: ZS44-28.6 – T2 / ZS44/30-S – B3 (For Straight Steerer fork)
Seatpost: 27.2mm
Seat Clamp: 31.8mm
BB: Threaded 68mm BSA
Rear Hub: 142x12mm
Front Hub: 110x15mm
Rear Axle: M12*1.5 Thread x168mm (Thread Length 17mm)
Front Axle: M15*1.5 Thread x125mm (Thread Length 15mm)
Chain Guide: ISCG05
Brake Mount: 160mm Direct Post

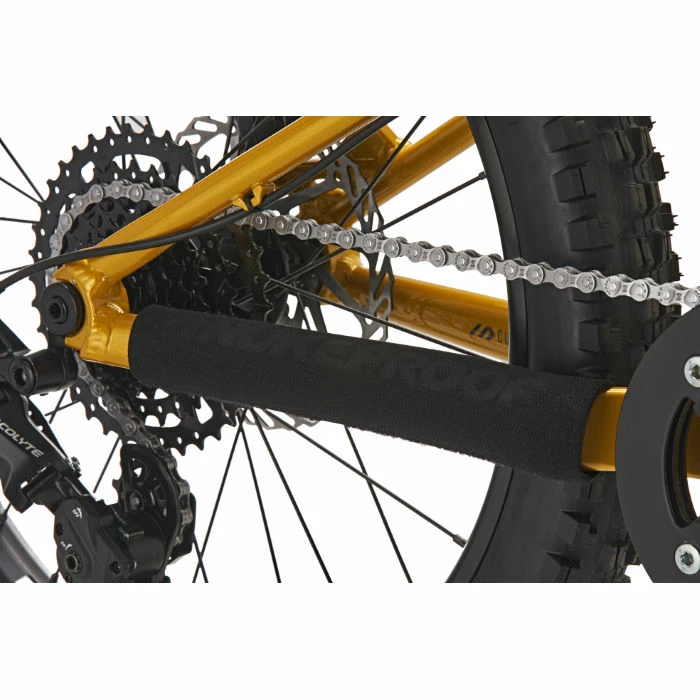

Protection: Kevlar Chainstay Protector

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Bemærk: Producenten kan forbeholde sig retten til at ændre specifikationen for det, der er vist på denne side.

Topfunktioner:

• Frame: Nukeproof Cub-Scout 20, custom-butted hydro-formed 6061 Alloy
• Fork: Nukeproof Cub-Scout 20″+ Fork, custom-butted hydro-formed 6061 Alloy
• Wheelset: Front Wheel: Joytec D041-15 15x100mm hub on WTB STi30 20″ TCS Rim; Rear Wheel: Joytec D952TSE-X12 12x142mm hub on WTB STi30 20″ TCS Rim; Tyres: Front & Rear: Maxxis Minion DHF 20″ x 2.4″, TR
• Crankset: Samox TAF38J 2 Piece Crank 127mm, 32T, BCD 104mm
• Shifter: Shimano M315 8-Speed, with optical display
• Rear Derailleur: Shimano M310 8-Speed
• Cassette: Sunrace CSM55 8-Speed, 11-34T
• Brakes: Clarkes Clout Kids Specific Hydraulic Brakes
• Weight: 10.02kg
