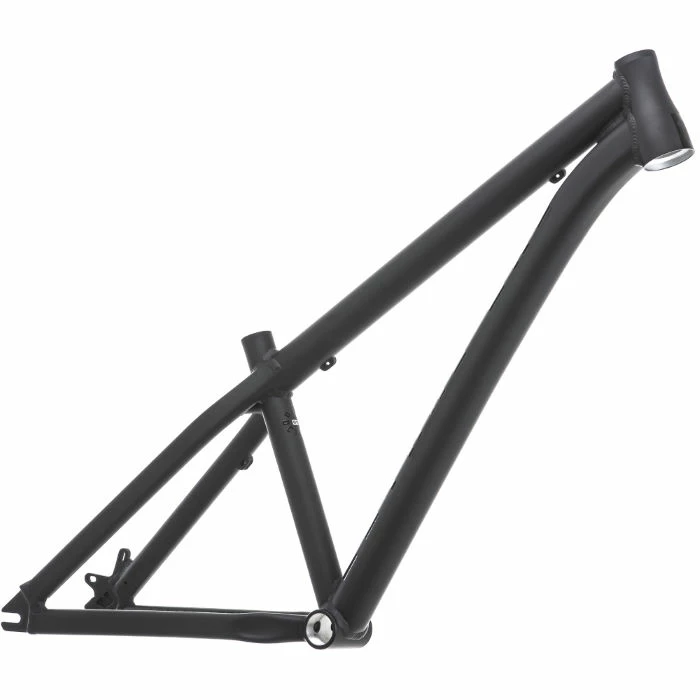

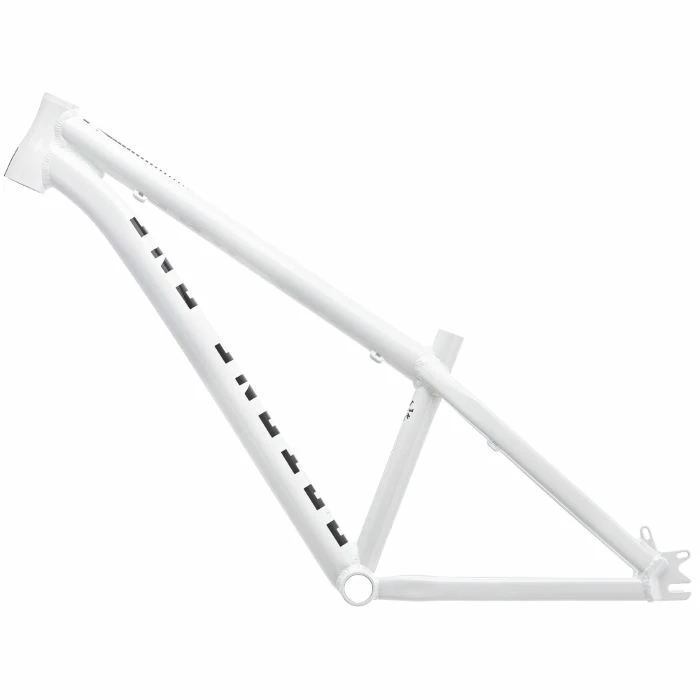

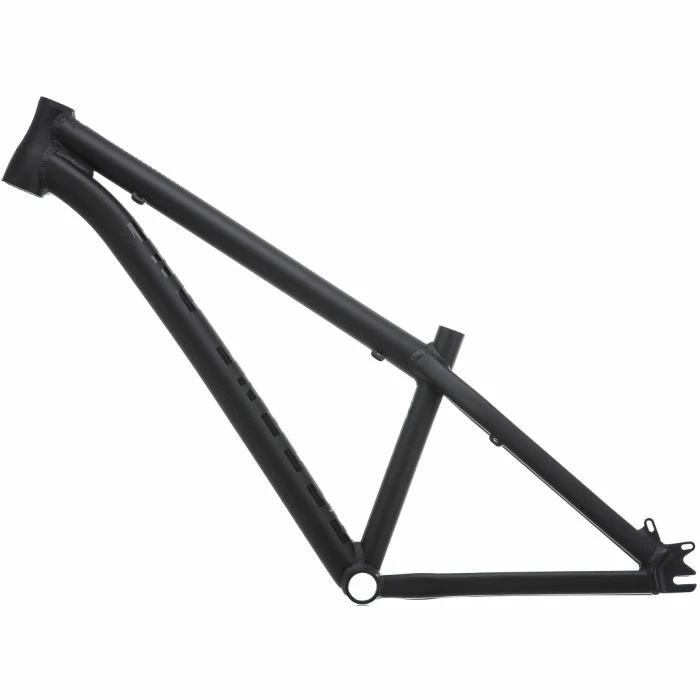

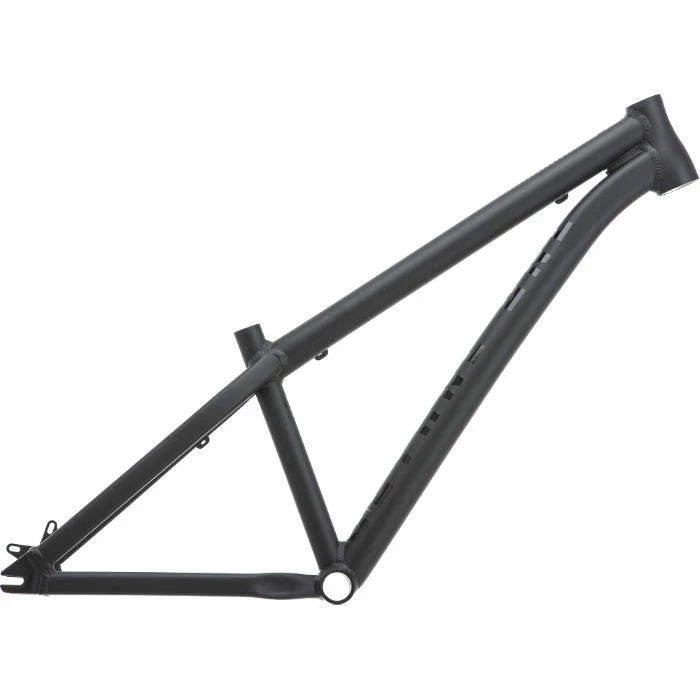

Octane One Zircus Frame (2022)

The ideal hardtail dirt jump frame for your ultra-stylish high-performance freestyle bike build, the Octane One Zircus Frame is engineered strong and lightweight using aluminium and is disc brake compatible and for use with 26″ wheels.

Suited to hitting jumps, throwing tricks and clearing gaps, this frame is engineered for exceptional performance with 26″ wheels, up to 140mm fork travel and is disc brake compatible only. With alloy construction, modern slack and low geometry and 2.5″ max tyre clearance, this frame is the ultimate fun machine.

Aluminium Frame for Dirt Jump and Slope Style Riding

The Zircus is an aluminium all-around dirt frame perfect for playing in the city and off-road. It’s a lightweight and strong aluminium frameset with ‘Pro’ dirt jump geometry designed to fit 26” wheels, forks with 80-140mm travel and a single-speed drivetrain. However, the frame is compatible with a derailleur hanger (sold separately) so you can convert the bike into a serious all-purpose off-road machine with gears if needed. Designed for riders who prefer the feel of aluminium frames. More slack and stabile than the radical steel Void frame. The Bottom Bracket (BB) is lowered for more stability, the top tube and chainstays are slightly longer than those in the Void and the head tube angle is slacker. Tough enough for jumps, perfect for pump tracks, comfortable enough for trail riding.

Stable, Agile and Stylish Hardtail Freestyle Frame

The Zircus uses beefy AL-6061 tubes that give it a super clean look. Behind the simple looks you can find nice tech details such as custom shaped and butted tubes (a very strong DT near HT area with no need for an additional external gusset), a new custom shaped fully integrated tapered head tube, custom rounded smooth looking tubes and sweet arched seat stays bridge that gives lots of tyre clearance.

This frame is all that you will need to rip like a pro in any terrain. Although the Zircus is a very strong frame it weighs only 2.1kg and has a very reasonable price.

Topfunktioner:

• Material: A6061-t6 Custom Formed and Butted Tubes
• Head Tube: Integrated Tapered Is42/is52
• Biggest Chainring: Up to ~34t
• Rear Hub: Spacing O.l.d 135x10mm
• Disk Brake Mount: IS (International Standard), Max Rotor Size: Up to 185mm
• Tyres: Maximum Size Recommended 26×2.35″
• Seat Post/Clamp: 30.9mm / 34.9mm
• Rear Derailleur: Optional Bolt-on Hanger Sold Separately
• Bottom Bracket Shell: Standard Threaded 68mm (Compatible With Mtb Cranks and 3pcs BMX Cranks With Euro BB)
• Weight: 2.09kg
